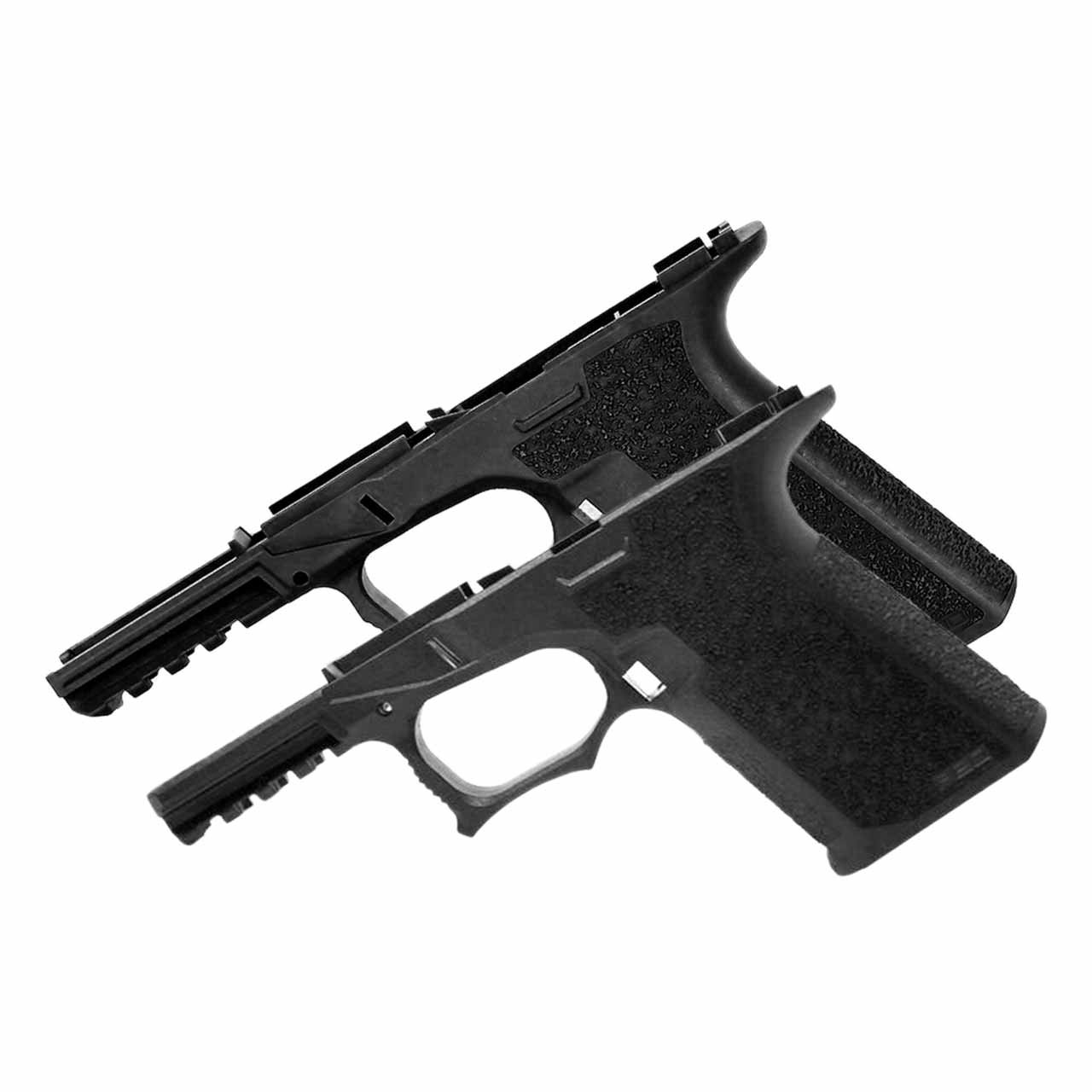

Poly80 PF940V2 And PF940Cv1 80% Frame And Jig Kit Bundle (Black Only)

This bundle delivers two complete, serial-number-free frame platforms from Polymer80: the full-size PF940v2 and the compact PF940Cv1. Each kit includes the corresponding polymer frame, jig, drill bits, end mill, and necessary pins for assembly. Designed for builders who value modularity, this black-only set allows you to complete two distinct grip frames from the same purchase, leveraging the same jig system across both sizes. The bundle is intended for hobbyists and custom firearm enthusiasts who wish to complete a frame from an unfinished 80% state, following all applicable federal, state, and local laws.

Overview

The polymer80 pf940v2™ and pf940cv1™ 80% frame and jig kit bundle (black only) combines two of the most widely adopted platforms in the 80% frame market. The PF940v2 supports full-size slide and barrel configurations, while the PF940Cv1 is optimized for compact builds. Both frames are manufactured from high-impact, glass-reinforced polymer and require finish machining steps to complete the fire control pocket, trigger housing area, and pin holes. The included jigs are precision-machined to ensure alignment and repeatability across both frame sizes. This bundle is a practical solution for builders who want to maintain a consistent grip angle and trigger reach across a full-size and compact pistol build without purchasing separate jigs.

Features & Specs

Each kit in this bundle is manufactured to exacting tolerances by Polymer80, a leader in the 80% frame category. The frames are designed to accept standard small frame parts kits and slides, providing broad compatibility with common aftermarket components. The following specifications apply to both the PF940v2 and PF940Cv1 units in this bundle:

• Frames: 80% completion level, requiring material removal in the trigger pocket and pin holes. Material is glass-reinforced Nylon 6/6 for impact resistance and dimensional stability. Color is black with a textured grip pattern on the front strap, backstrap, and side panels. Each frame includes a molded rail system (front rail and rear rail module) for slide travel.
• Jig System: Each kit includes a dedicated, reusable jig made from CNC-machined aluminum guides and a polymer base. The jig accommodates both the PF940v2 and PF940Cv1 frame lengths with adjustable indexing. Kit includes two 3mm drill bits, one 4mm drill bit, one 2.5mm end mill, and a step drill bit for the trigger pin hole. All tooling is high-speed steel.
• Compatibility: PF940v2 accepts full-size slides (4.7 inch barrel length) and full-size grip modules. PF940Cv1 accepts compact slides (4.0 inch barrel length) and compact grip modules. Both frames accept standard Glock-pattern small frame parts kits and aftermarket triggers, barrels, and slides from major manufacturers.

• Kit Contents: Two complete frames (one PF940v2, one PF940Cv1), two jigs, two sets of drill bits and end mills, two sets of frame pins, two trigger housing pins, two locking block pins, and one instruction booklet per kit. All components are black polymer or black oxide steel.
• Dimensional Specs: PF940v2 grip length is 4.7 inches with a 5.0 inch frame length. PF940Cv1 grip length is 4.1 inches with a 4.5 inch frame length. Both frames have a standard 1911-style grip angle of 17 degrees. Weight per frame (unfinished) is approximately 2.8 ounces.
• Material Certifications: Frames are molded from Polymer80 proprietary blend verified for impact strength (Izod 12.0 ft-lb/in) and heat deflection temperature (300 degrees F at 66 psi). Jig base is 6061-T6 aluminum with hard anodized finish.

Who It Is For

This bundle is designed for intermediate to advanced firearm builders who have experience with 80% frame completion. It is not intended for first-time builders unless they have access to a drill press, vise, and proper measuring tools. The polymer80 pf940v2™ and pf940cv1™ 80% frame and jig kit bundle (black only) is ideal for builders who want to maintain a consistent platform across two different size configurations without sourcing separate tooling. It suits those who prefer a black, non-cerakoted finish for durability and uniform appearance. This bundle is also popular among builders who wish to create a matched set for training or competition, as the grip texture and angle remain identical between the full-size and compact frames. It is not for those seeking a completed, ready-to-fire firearm. The builder assumes full responsibility for legal compliance and safe completion.

Shipping & FFL

This product is classified as an unfinished frame and is not a firearm under federal law. It may be shipped directly to your residential or business address without requiring transfer through a Federal Firearms License (FFL) holder. However, it is the purchaser’s sole responsibility to ensure compliance with all applicable federal, state, and local laws regarding the possession and completion of 80% frames. Some states and municipalities impose restrictions on the purchase, possession, or completion of unfinished frames. By purchasing this bundle, you certify that you are legally eligible to own a firearm and that you will complete the frame in accordance with all laws. No FFL transfer is required for this item, but we strongly recommend verifying local regulations prior to purchase. We are not responsible for any legal consequences resulting from non-compliance. Shipping is via ground service with adult signature required. Returns are accepted only for defective jig components or missing items. Completed frames are not returnable.
